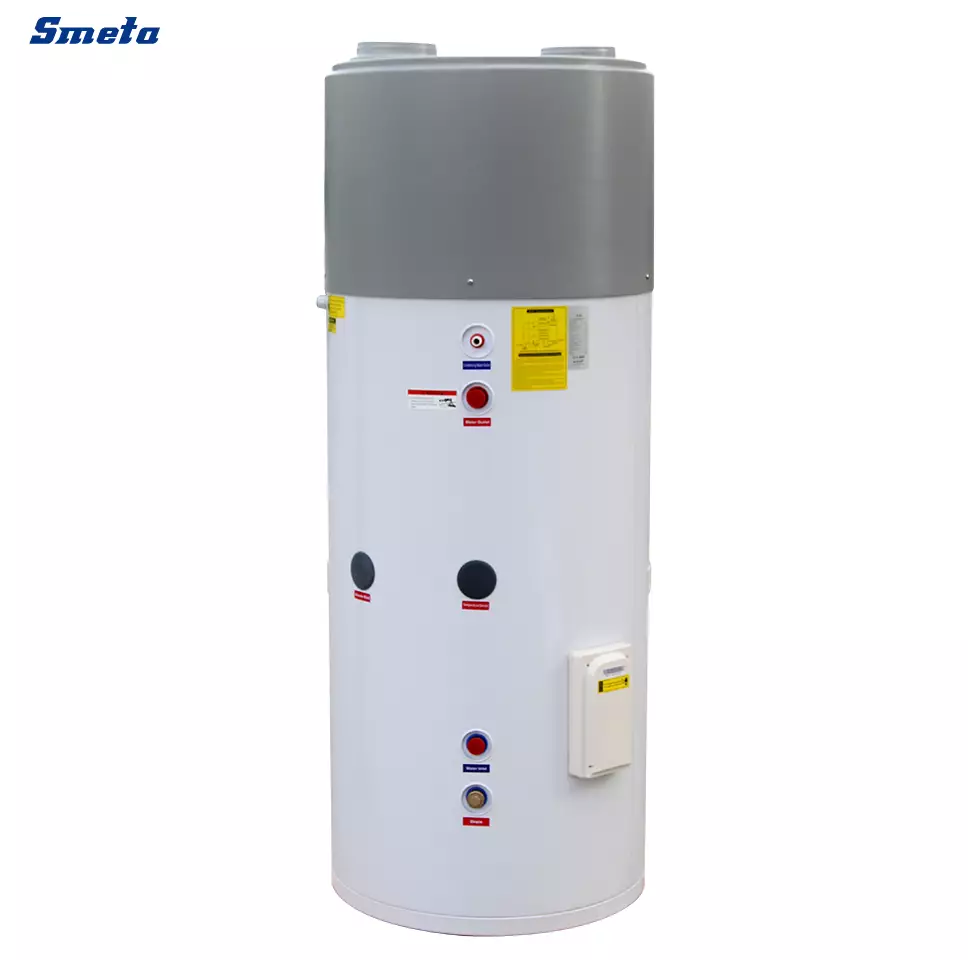

Model : TTS-200CSE1; TTS-250CSE1; TTS-300CSE1
Color : White, Grey, Customizable
· R290 refrigerant,environmental friendly
· Higher water temperature output up to 75℃
· External condenser coil,more safe & reliable
· Adopt enamel inner tank
· High pressure protection
· smart Defrost automatically
· With sterilization function
· MODBUS communication
· Full automatically operation
· With auxiliary electric heater

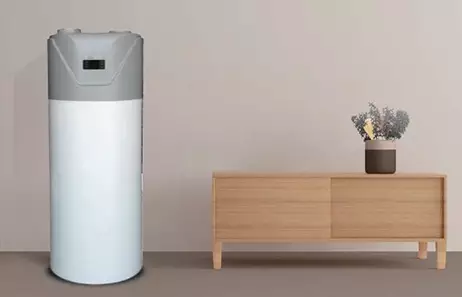

A super energy-saving water heater
High energy efficiency and low power consumption
The air-energy water heater is driven by a small amount of electric energy through thermal cycle,Absorb the heat in the air to heat water, and the energy consumption is equivalent to one quarter of the electric water heater and one third of the gas water heater.
75 ° C high temperature hot water, integrated design, high-end positioning
Hot water is available in four seasons, and the heating is energy-saving and efficient. Smeta uses r290 environmental protection refrigerant, which can have 75 ° C high temperature hot water, with higher water temperature and larger water volume, to meet the needs of higher quality bathing.
The overall design is adopted, and the water tank is integrated with the host, which saves half of the space of the pipeline host, and is convenient for installation, clean and beautiful.

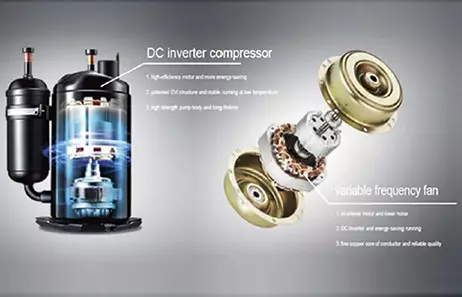

Top Core Components
The original imported compressor has powerful heating, energy saving and durability, stable operation, and service life of up to 15 years.
Silent chamber design and efficient lubrication system, low vibration and low noise.
High energy efficiency and low power consumption.
This smeta all in one air source heat pump is full automatically operation and with auxiliary electric heater.

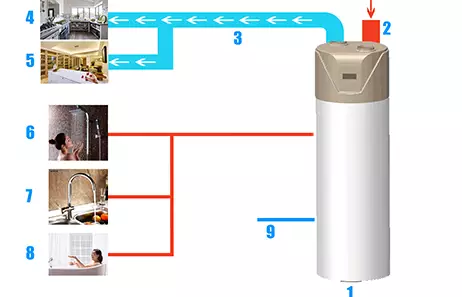

Heat pump water heater applications
2.Air inlet
3.Air duct
4.Kitchen cooling
5.Storeroom cooling
6.Shower hot water
7.Domestic hot water
8.Bath hot water
9.Cold water inlet
| Model No. | TTS-200CSE1; TTS-250CSE1; TTS-300CSE1 |
| Heating Capacity（kW) | 2.5 |
| Power Input（kW) | 0.6 |
| COP | 4.16 |
| Max Power Input（kW) | 3 |
| Rated Current（A） | 2.7 |
| Max Current（A） | 15 |
| Power Supply | 220V/1/50Hz |
| Backup Electric Heater（W） | 2000 |
| Refrigerant | R290/1050g |
| Net Dimension(mm) | 620×1750 |
| Package Dimension(mm) | 700×700×1930 |
| Net Weight(Kg) | 88 |
| Gross Weight(Kg) | 106 |
| Noise（dB) | 48 |
| Water tank volume(L) | 200 |
| Working temperature range（℃） | -7～43 |
| 40HQ | 51 |
