Model : TM-744WS3E-I/TM-744WS3E-WI
Color : SS
· Large-Capacity Four-Door Storage
· Integrated Ice-Making Function
· 13L Convertible Temperature Zone
· 204L Dedicated Freezer Capacity
· 12kg/24h Freezing Capacity
· 37dB Low-Noise Operation
· R600a Refrigerant with Cyclopentane Foam
· Water Dispenser Option for WI Variant

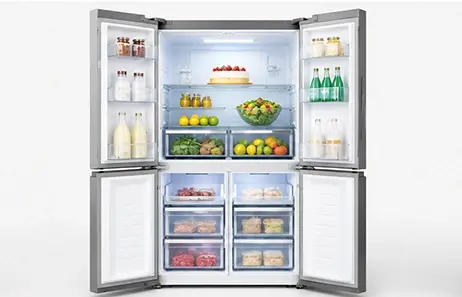

The SMETA TM-744WS3E series provides up to 539L of total storage capacity, with 322L of refrigerator space and 204L of freezer space. The four-door configuration separates chilled and frozen storage into clearly defined sections, giving wholesalers a practical format for customers who need substantial household food storage without moving to a larger multi-unit refrigeration setup.

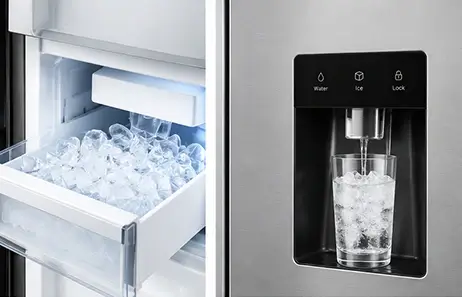

Beyond conventional refrigerator and freezer compartments, the TM-744WS3E series incorporates a 13L convertible temperature zone for more flexible storage. The built-in ice maker adds everyday convenience, while the separate temperature-controlled space allows the product to accommodate different storage requirements.
For the TM-744WS3E-WI, the configuration additionally includes a water dispenser, creating a more feature-rich four-door refrigerator option for appliance retailers.

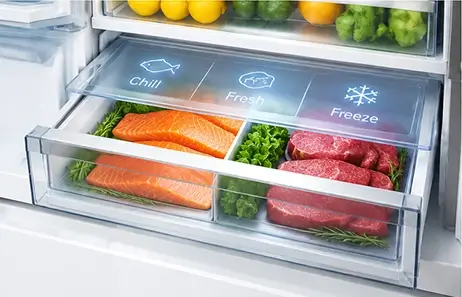

With 204L of dedicated freezer capacity and a rated freezing capacity of 12kg per 24 hours, the TM-744WS3E series is designed for households that regularly need substantial frozen-food storage. The dedicated freezer section keeps frozen products separate from the main refrigerator compartment, making the four-door configuration suitable for organized food storage.
This specification also gives distributors a clear performance point to communicate when comparing high-capacity refrigerator models in their product range.

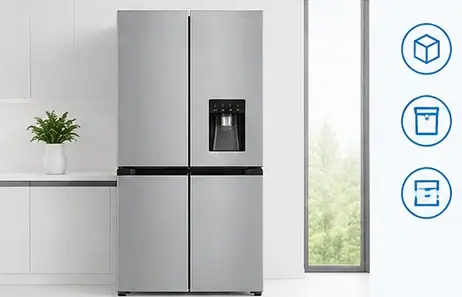

The TM-744WS3E series is rated at 37dB, providing a relatively quiet operating profile for a full-size four-door refrigerator. This characteristic can be particularly relevant for residential kitchens where the refrigerator operates continuously and may be located close to dining or living areas.
Combined with the SN-T climate classification, the model provides distributors with a specification profile suited to a broad range of residential appliance applications.
The TM-744WS3E series uses R600a refrigerant with 85g refrigerant charge and cyclopentane foam, combining the refrigeration system with a full-size four-door cabinet measuring 911 × 706 × 1830mm. The two configurations allow distributors to select between different feature packages while retaining the same core cabinet dimensions and refrigeration platform.
The TM-744WS3E-I combines the ice maker with a 13L convertible temperature zone, while the TM-744WS3E-WI adds a water dispenser and convertible drawer configuration for buyers seeking additional convenience features.
| Model | TM-744WS3E-I/TM-744WS3E-WI |
| Total Capacity(L) | 539/535 |
| Fridge Capacity(L) | 322/318 |
| Freezer Capacity(L) | 204 |
| Multi-use Compartment(L) | 13 |
| Voltage | 220～240V/50Hz |
| Energy class | E |
| Refrigerant | R600a/85g |
| Certification | CB LVD EMC ERP |
| Product size (mm) | 911*706*1830 |
| Weight(Net/Gross kg) | 95/104 |
| Loading (40HQ) | 48 |
