Model : TSS-52D
Color : White/Black
· Compact 52L Beverage Display Capacity
· Double-Layer Floating Glass Door
· 0–12°C Adjustable Cooling Range
· Roll-Bond Evaporator for Direct Cooling
· One Adjustable Wire Shelf
· Mechanical Dial Temperature Control
· Stable Placement with 4 Adjustable Screws
· CE & ETL Certified Commercial Design

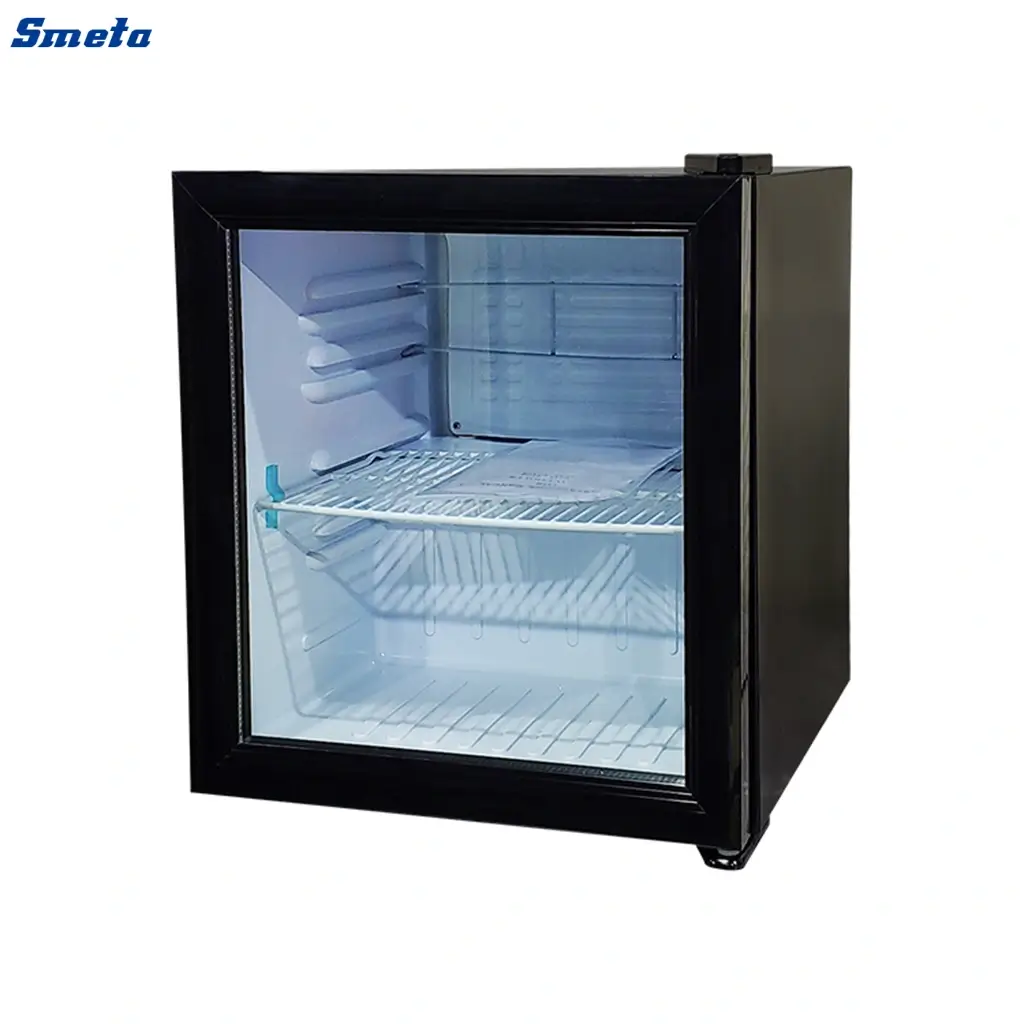

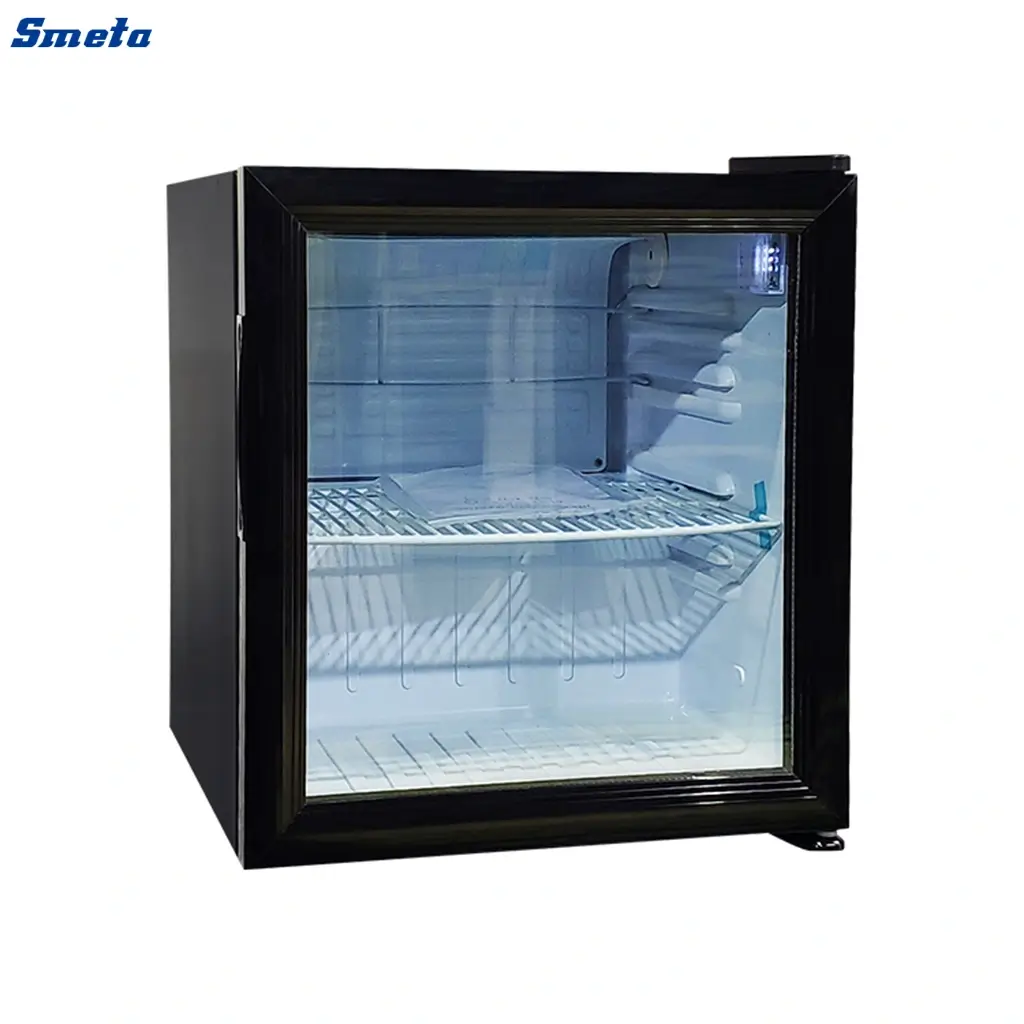

The TSS-52D mini beverage fridge combines a 52L (1.8 cu.ft.) capacity with a compact cabinet measuring 435 × 500 × 501 mm. Its small footprint makes it suitable for beverage merchandising where available floor or counter-adjacent space is limited. The white/black cabinet design can be integrated into different retail, hospitality and service environments without requiring a large refrigeration footprint.
Unlike an enclosed mini refrigerator, the TSS-52D uses a double-layer floating glass door, allowing beverages to remain visible without opening the cabinet. This makes the refrigerator particularly suitable for locations where product presentation and quick identification matter. The coated steel cabinet and optional door-frame color configuration also provide flexibility for different commercial product programs.
The TSS-52D provides a 0–12°C temperature range, allowing the cabinet to accommodate different chilled beverage storage requirements. A mechanical dial thermostat provides straightforward temperature adjustment, while the direct-cooling configuration uses a roll-bond evaporator to support cooling within the compact cabinet.
The interior includes one adjustable coated-wire shelf, allowing distributors and end users to configure the available storage space according to the beverage assortment.
The TSS-52D uses a mechanical dial thermostat rather than a complex electronic control system. Combined with a hot-wall condenser, roll-bond evaporator, coated-steel cabinet and powder-coated finish, the configuration is designed around straightforward operation and a practical commercial equipment structure.
The TSS-52D is equipped with four adjustable screws, allowing the cabinet to be leveled on different floor surfaces. Its compact 435 × 500 × 501 mm body and 19.5 kg net weight make the unit relatively easy to position within smaller commercial environments.
The combination of a glass-door display format, compact capacity and adjustable leveling makes the model suitable for applications such as:
For wholesalers, this creates a broader multi-application SKU that can serve several customer segments rather than being restricted to one specific type of business.
| Model Number | TSS-52D |
| Capacity(L) | 52 |
| Thermostat | Mechanical Dial |
| Condenser | Hot Wall |
| Evaporator | roll-bond |
| Cabinet | Coated Steel Sheet |
| Cabinet Color | White/Black |
| No. of Paint Coatings | Powder Coating |
| Shelves | Coated Wires, 1 (Adjustable) |
| Blow Agent | cyclopentane |
| Cabinet Liner | Coated Aluminium Sheet |
| Temperature range | 0-12 |
| Door | Double Layers Floating Glass |
| Door Frame | Plastic |
| Certificate | CE&ETL |
| Color of Door Frame | Optional |
| Product Dimentions(mm) | 435*500*501 |
| Packaging Dimentions(mm) | 521*581*560 |
| Weight(Net/Gross)(kg) | 19.5/21.5 |
| Loading (40HQ) | 352 |
