Model : TM-747W3U
Color : White/Grey/Black
· 36-Inch Premium French Door Design
· 20.3 Cu.Ft Family-Sized Storage Capacity
· US Automatic Ice Maker Ready
· Energy-Saving Inverter Compressor
· Large Bottom Freezer Drawer
· Electronic Precision Temperature Control
· Flexible Interior Storage Layout
· OEM & Private Label Customization

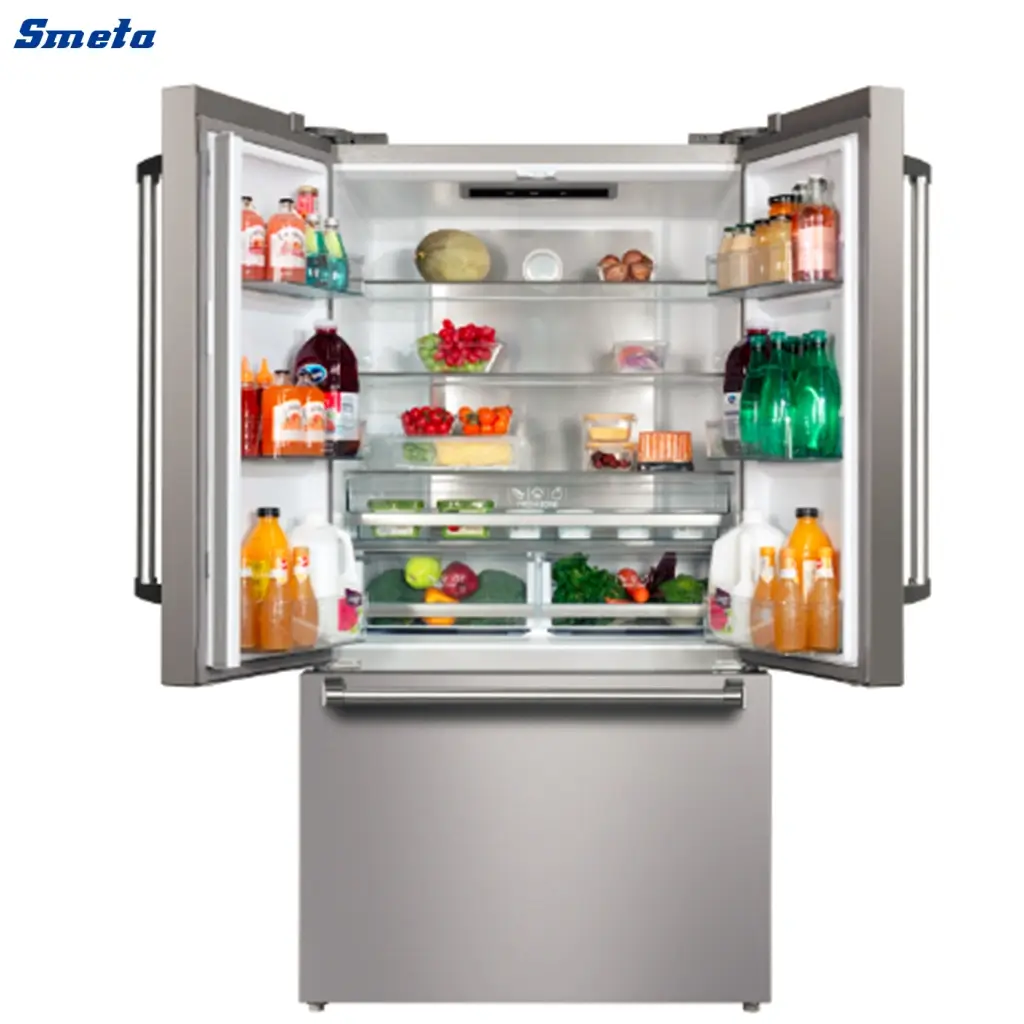

Designed with a full-width 36-inch cabinet, the TM-747W3U offers generous interior capacity while maintaining a clean built-in appearance. The French door configuration improves accessibility by keeping frequently used fresh food at eye level, making everyday storage more convenient for modern households.
With a total capacity of 20.3 cu.ft, including 14.21 cu.ft of refrigerator space and 6.13 cu.ft of freezer storage, this model provides an ideal balance between fresh food preservation and frozen food organization.
The spacious bottom freezer drawer helps users organize frozen food by category while maximizing usable storage space. A dedicated freezer drawer allows convenient access to frozen meals, meat and packaged food without disturbing the refrigerator compartment.
The fresh food section includes:
♦ 3 refrigerator drawers
♦ 6 gallon-capable door racks
♦ 2 tempered glass shelves
to support flexible food organization for everyday family use.
Powered by an inverter compressor and environmentally friendly R600a refrigerant, the refrigerator delivers stable cooling while reducing unnecessary energy consumption.
Combined with the dynamic condenser and electronic temperature control, the system maintains consistent temperatures throughout the cabinet while helping extend food freshness.

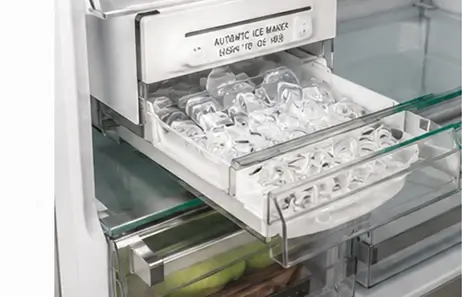

Designed for households that value convenience, this refrigerator supports a US-style automatic ice maker, providing a continuous ice supply for beverages and entertaining.
The automatic ice-making system enhances the overall user experience while increasing the product’s appeal for premium appliance programs.
Developed for OEM and private-label projects, the TM-747 series offers multiple exterior finishes including white, black, gray and stainless steel options.
Additional customization options include:
♦ automatic ice maker
♦ VCM stainless steel door panel
♦ multiple handle styles
allowing distributors, retailers and appliance brands to tailor product specifications for different sales channels.
| Model | TM-747W3U (TM-747WB3U/TM-747WA3U/TM-747WS3U) |
| Net Capacity (cuft.) | 20.3 |
| Fridge compartment | 14.21 |
| Freezer compartment | 6.13 |
| Certified by | UL |
| Energy Efficiency Level | E-star |
| Inverter / Fixed Frequency Compressor | Inverter compressor |
| Condenser | Dynamic Condenser |
| Finishing(PCM) | White/Grey/Black |
| Handle | Recess handle/ grip handle |
| Adjustable leg | Yes |
| Temperatue control | Electronic |
| Ice making | Simple ice tray/US type automatic ice maker |
| Product Dimension(Width*Depth*Height/inch) | 36*27.8*70 w/o grip handle) |
| Packaging dimension(Width*Depth*Height/inch) | 38.11*29.53*72.64 |
| Weight(Net/Gross)lbs | 231.5/255.5 |
| Loading (40HQ) | 48 |
